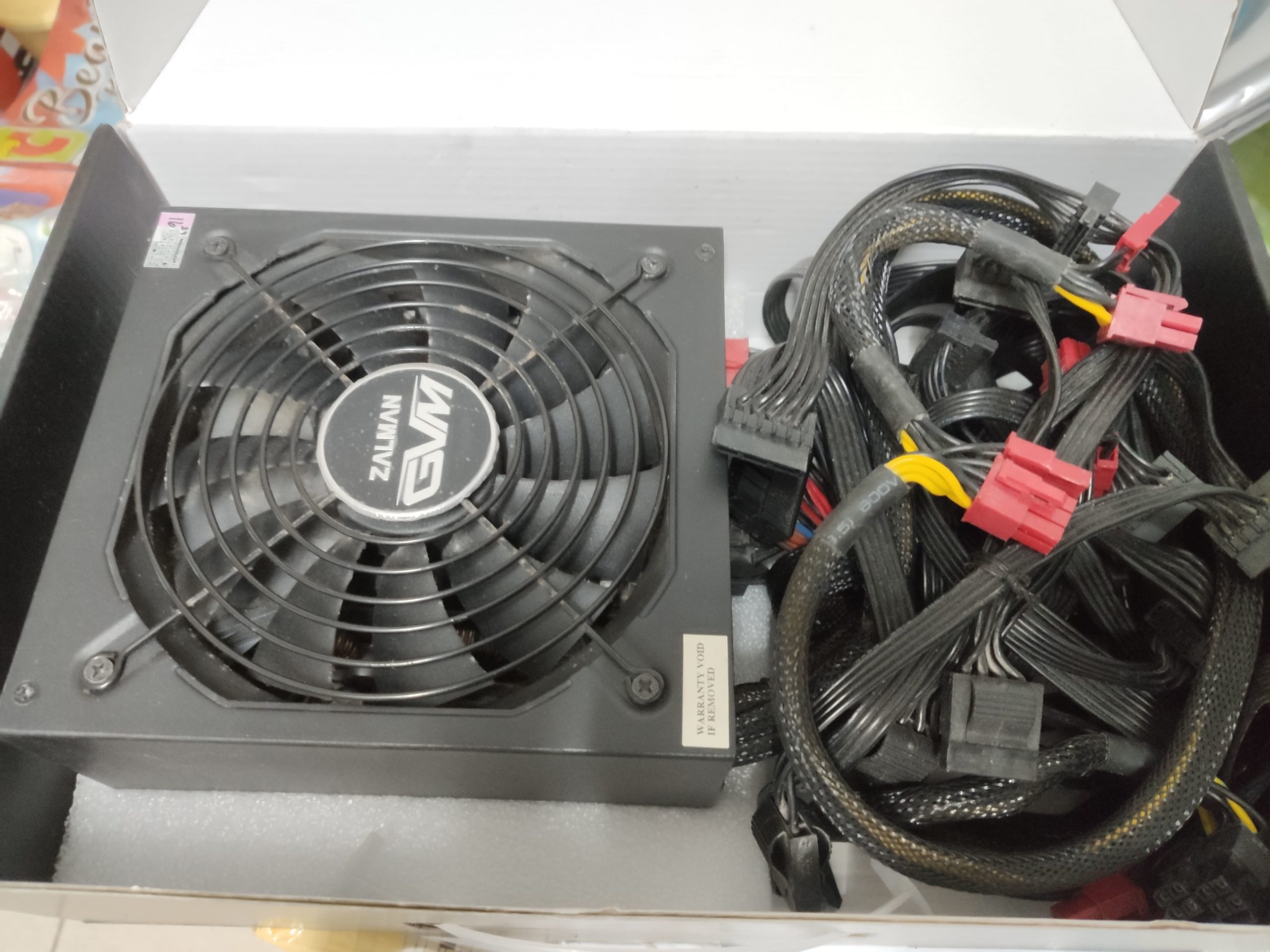

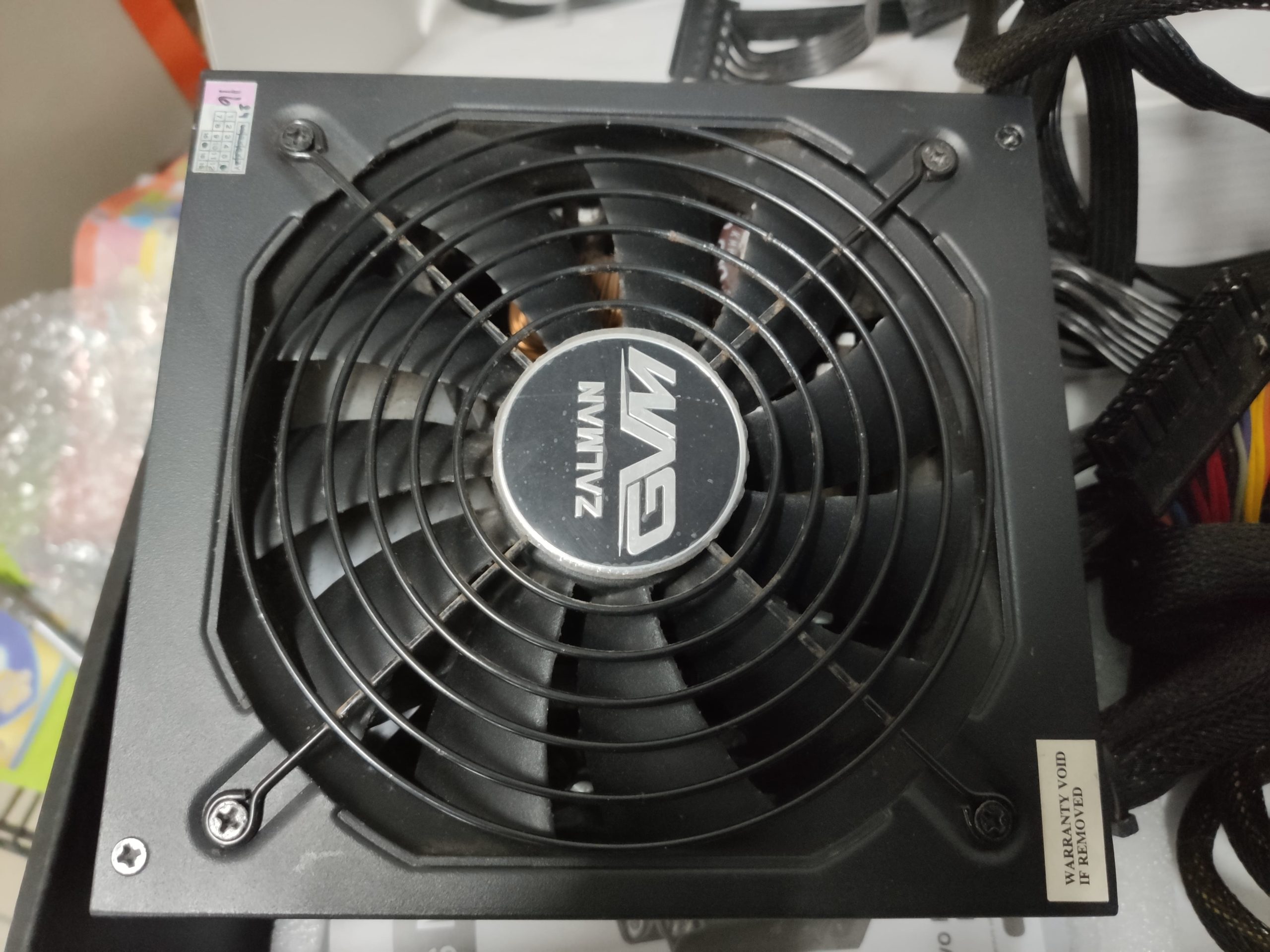

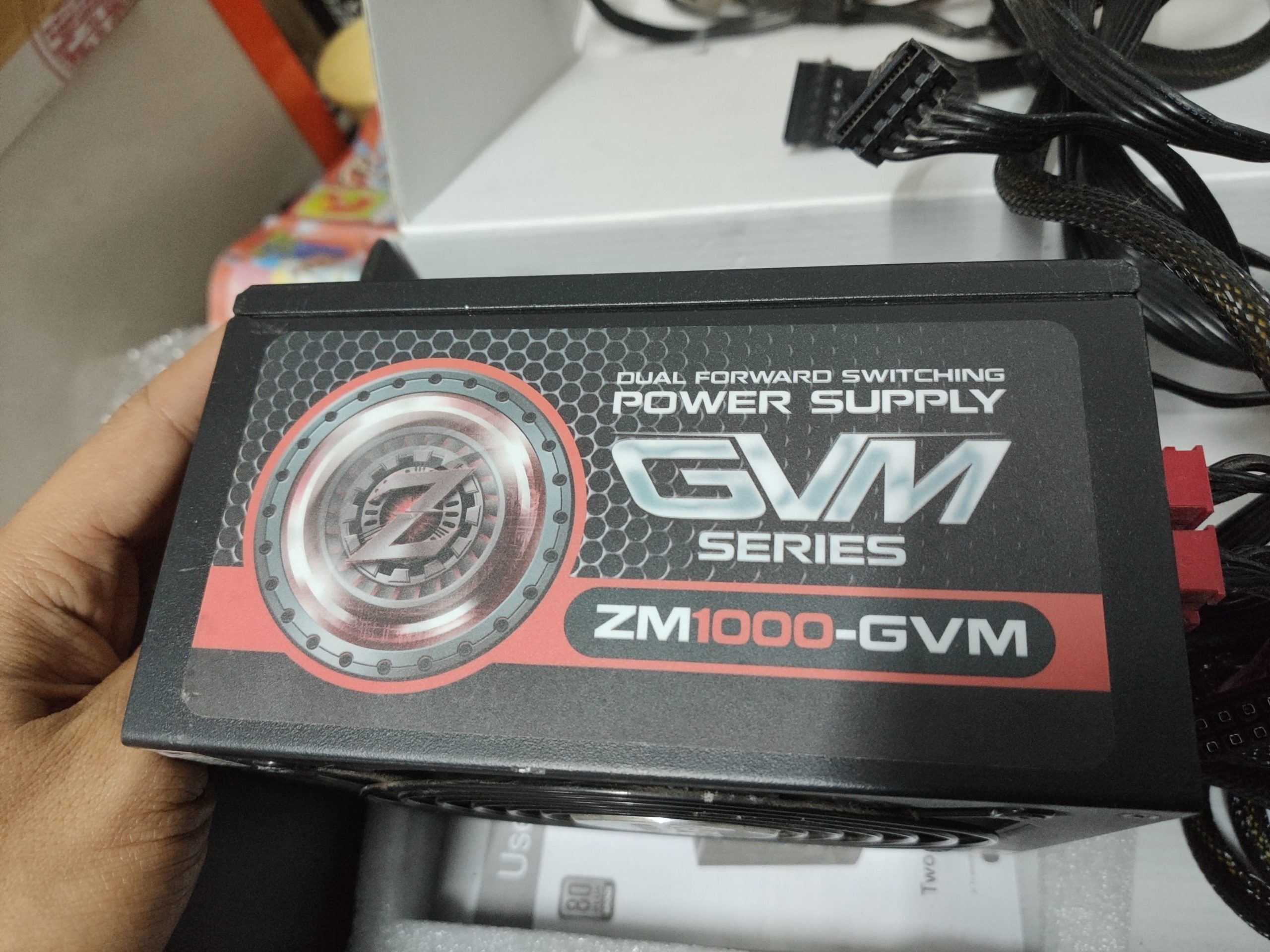

POWER SUPPLY ZALMAN ZM1000-GVM 1000W 80 PLUS Bronze มือสอง
ใช้งานปกติครับผม สายไฟครบทุกเส้น มีกล่อง
* ไม่มีสาย AC POWER ให้นะครับ*
สินค้ารับประกัน 7 วันจาก LNWCPU
** รับประกันเฉพาะปัญหาที่มาจากตัวสินค้าเท่านั้น **
ลูกค้าสามารถสั่งซื้อได้ผ่านหน้าเว็บหรือ Inbox มาได้ที่แฟนเพจ : LnwCpu รับซื้อ และจำหน่ายอุปกรณ์คอมพิวเตอร์มือสอง
หรือแอดไลน์ @lnwcpu
สเปค
Electrical & Physical Characteristics
AC Input Range Voltage 100 ~ 240VAC ±10% Vout Output Load Rating Combined Power
Frequency 50 ~ 60Hz ± 3 Imin Imax Ipeak
AC Input Current 100VAC 15A +3.3V 0.1A 23A
140W 1000W
240VAC +5V 0.2A 23A
PFC Type Active PFC +12V 0.1A 83A
996W
Power Factor Correction Max 99% -12V 0.0A 0.5A
6W
Inrush Current Limit
(@ Cold Start at 25℃) 100VAC Max 150A +5VSB 0.0A 3A
15W
240VAC Ambient Temperature
Efficiency Max88% @ 230VAC, Typical load Operation 0 ~ +45°C
DC Output Voltage
Regulation Vout Regulation Range At
Full
Load Storage -20 ~ +70°C
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95%RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95%RH
-12VDC ±10% -10.8 ~ -13.0V At
Full
Load Protection Funtions
+5VSB ±5% +4.75 ~ +5.25V Over-Current Protection (OCP)
Over-Voltage Protection (OVP)
DC Output Ripple
& Noise Vout Standard Range Under-Voltage Protection (UVP)
+3.3VDC 50mV Short-Cicuit Protection (SCP)
+5VDC 50mV Over-Temperature Protection (OTP)
+12VDC 120mV Over-Power Protection (OPP)
-12VDC 120mV Dimensions 160(L) x 150(W) x 86(H) mm
+5VSB 50mV Weight 2.9kg
24-PIN M.B Connector 1 Connector
8-Pin CPU Connector 2 Connector
6+2 PIN GPU Connector 6 Connector
SATA Connector 12 Connector
รีวิว
ยังไม่มีบทวิจารณ์
